Super-fast pneumatic pressing power with a 1.5m2
footprint. The 3rd generation A509 cardboard and
plastic baler combines speed and power for heavyduty
efficiency.
A Heavy-duty baler with a footprint of just 1.5m², the A509 compacts with 8 tonnes of force and boasts a super-fast pressing cycle of less than 15 seconds.
Adaptable to compact plastic (300kg bales), cardboard (225kg bales) as well as other recyclable materials, the wide door and large pressing chamber of the A509 means that it can handle large volumes of bulky waste material.
As with all Mil-tek pneumatic machines. EN16500 features are standard and the A509 has a safe and simple two-handed baleout mechanism.
The A509 baler is the third generation of Mil-tek pneumatic balers, featuring two heavy-duty double-acting cylinders that use compressed air to press and release the plate.
Running on compressed air means that the A509 can connect to an existing air source, an efficient power source free of hydraulic oil, and free of risk of contamination.
Carboard Bale
Plastic Bale
Pressing cycle
< 225 kg
< 300 kg
15-25 sec.
Height
760-880 mm
Width
1250 mm
Depth
835 mm
Banding
19 mm (#999021)
Height
570 mm
Width
1250 mm
Depth
800 mm
Height
2530 mm
Width
1450 mm
Depth
1040 mm
Weight
920 kg
Noise Level
< 70 db (A)
Pressing force at 8 bars
8000 kg
Certifications
CE, EN16500, UKCA

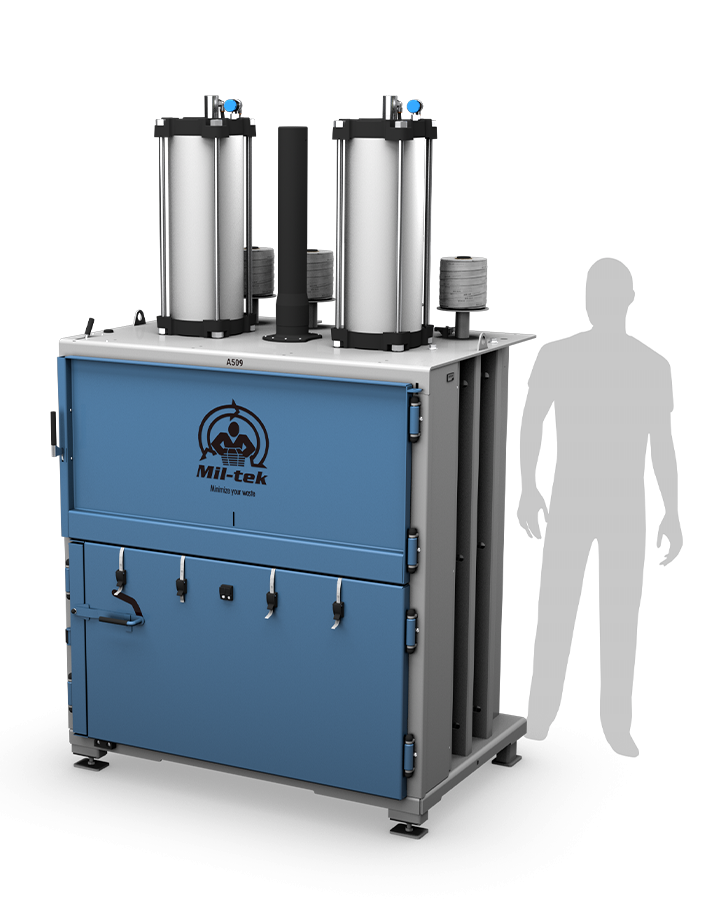

A509 Cardboard & Plastic Baler
This baler is available with dust extraction!
