2205 Cardboard & Plastic Baler

2205 Cardboard & Plastic Baler

Fully compliant with EN16500 standards, the Mil-tek 2205 baler has a deep vertical chamber and large capacity, with a small footprint.

  • Large door, long vertical chamber
  • Ergonomic, easy, clean and safe
  • Low on noise, low on energy
  • New EN16500 safety features
  • Fast pressing cycle & bale-out indicator
  • Improved fail-safes and locking mechanisms
pneumatic-air-power-badge cardboard-badge plastic-badge

the Mil-tek 2205 is fully compliant with EN16500 safety standards. The 2205 baler has a small physical footprint of around .29m² and features a long vertical pressing chamber. The means that the 2205 baler can create a bale almost twice the size of a model 2102 while covering a similarly small floor space.

pneumatic-air-power-badge cardboard-badge plastic-badge

The Successor

The Mil-tek 2205 is out of production. The redeveloped successor is called A205 and boasts a whole range of improvements.

Take a look:

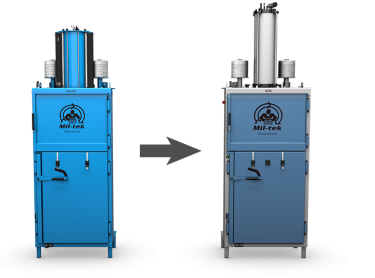

Two balers with an arrow from the old model on the left to the new model on the right, showing the upgrade

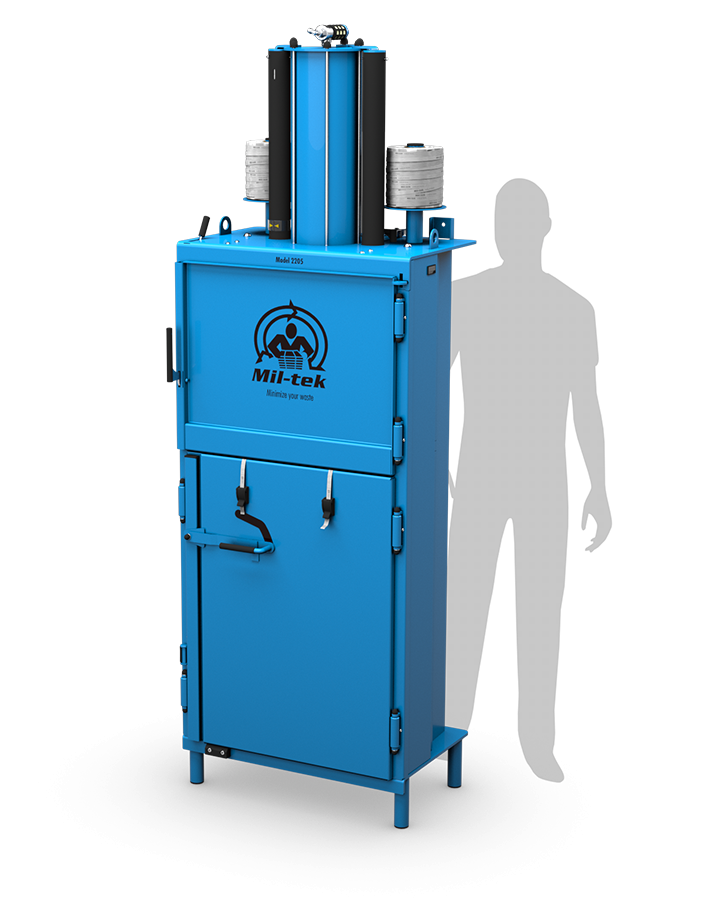

The Mil-tek 2205

An update of the 205TS, the Mil-tek 2205 is fully compliant with EN16500 safety standards. The 2205 baler has a small physical footprint of around .29m² and features a long vertical pressing chamber. This means that the 2205 baler can create a bale almost twice the size of a model 2102 while covering a similarly small floor space.

The safety and the operational features make the EN16500-compliant machines not only our safest ever machines, but also our fastest: the 2205 has a full pressing cycle of around 7 seconds.

Like all of the EN16500-compliant machines, the Mil-tek 2205 baler is powered exclusively by compressed air. This means that the pneumatic baler uses dramatically less power than a hydraulic baler. Running on just 8 bars of pressure, the 2205 baler boasts patented ECO-Drive technology that balances the amount of pressure required for each stroke and applies constant compacting pressure without increasing power usage.

blue pneumatic balers 2205

Technical specifications

Degree of compaction

85-90%

Cardboard bale

Plastic bale

Pressing cycle

< 60 kg

< 120 kg

7-15 sec.

Bale Size

Height

960 mm

Width

650 mm

Depth

450 mm

Banding

9mm (#999018)

Door Opening

Height

475 mm

Width

650 mm

Depth

415 mm

Machine Size

Height

2260 mm

Width

775 mm

Depth

540 mm

Weight

255 kg

Noise

Noise Level

< 70 dB (A)

Pressure

Pressing force at 8 bars

2500 kg

Approvals

Certifications

CE, EN16500

2205 Cardboard & Plastic Baler
